In the rapidly evolving landscape of biotechnology, the field of cell culture has witnessed remarkable
| Brand | BAILUN bio Bioreactor and Fermenter Manufacturer |
| Model | BLBIO |
| Type | Fermentation Extraction |
| Video outgoing-inspection | Provided |
| Marketing Type | New Product 2024 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure ves |
| Weight | 400 |
| Warranty | 1 Year |
| Automatic Grade | Automatic |
| Condition | New |
| Brand Name | Bailun |
| Power | 0.75KW-75KW |
| Voltage | 220/380Volt 50/60 Hz |

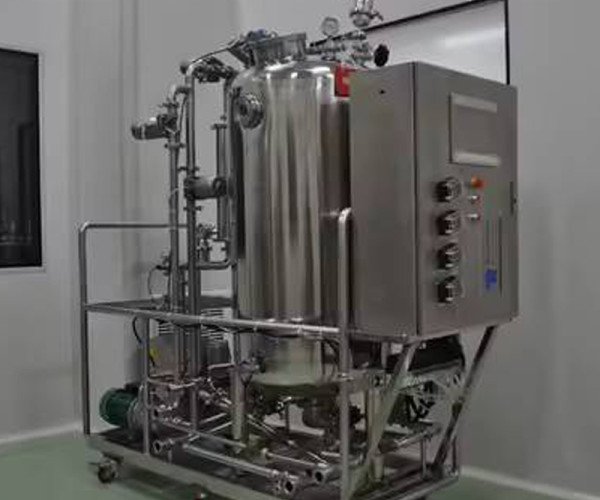

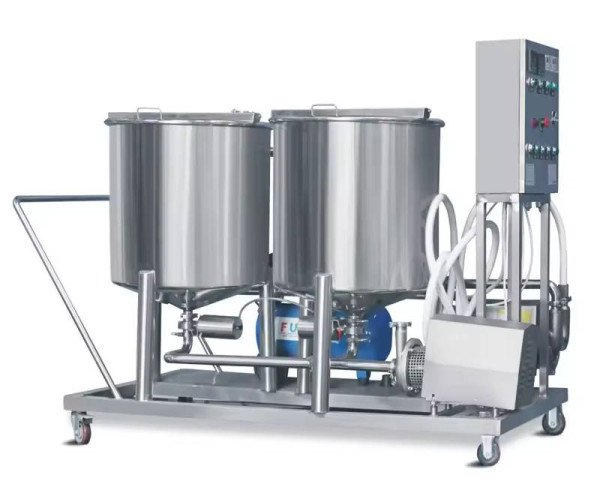

| Product name | CIP station |
| Total volume | 5L-200KL |
| Working volume | 30%~70% |
| Terms of Payment | L/C, D/A, D/P, T/T |
|
Parameter
|
Description
|
||
|
Total volume
|
5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 500KL etc.
|
||
|
Working volume
|
30%~70%
|
||
|
Tank
|
Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5
|
||
|
Stirring system
|
Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle
Stir speed: 50~1000rpm/50-400rpm
|
||
|
Sterilization
|
Manually Sterilize in place(SIP), auto control by program is optional
|
||
|
Clean
|
Clean in place (CIP) by spray ball + CIP control valves and pipelines
|
||
|
Gas control
|
Control by rotor meter, air flow 1 vvm or O2 flow
|
||
|
Feeding
|
Automatically feeding by peristaltic pump
|
||
|
Anti-foam control
|
Automatically add antifoam by peristaltic pump
|
||
|
Temperature control
|
Auto-control, electric heating range: water source add 5ºC to 70ºC
|
||
|
PH control
|
PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.
|
||
|
Do control
|
0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.
|
||
|
Sampling
|
Sampling valve, can sterilization separately, manual
|
||
|
Harvest
|
Zero dead zone bottom valve, can sterilization separately, manual/auto
|
||
|
Lid lift system
|
30L-500L have lid lift system, 700-1000L have human hole.
|
||
|
Innoculation
|
4 valves group or pin in with flam protection
|
||
|
Pressure
|
Auto control, BD Germany pressure transmitter
|
||
|
Exhaust
|
Have condenser before exhaust, control by diagram valve / Proportional control valve.
|
||
|
Control parameters
|
10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions
|
||
|
Optional configuration
|
Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate,Batch culture, Seed transfer, etc.
|
||
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Vaccine production,bacteria, yeast, yogurt,fungi Showroom Location Egypt, Canada, United States, Indonesia, Pakistan,…
Parameter Description Total volume 5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 500KL etc. Working volume 30%~70% Tank Jacket tank, made by SS316 and SS304,…
Parameter Description Total volume 5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 500KL etc. Working volume 30%~70% Tank Jacket tank, made by SS316 and SS304,…
Parameter Description Total volume 5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 500KL etc. Working volume 30%~70% Tank Jacket tank, made by SS316 and SS304,…
Combined with multiple configurations and combinations, it can be widely and flexibly used in various suspension cultures of microorganisms or…
In the rapidly evolving landscape of biotechnology, the field of cell culture has witnessed remarkable

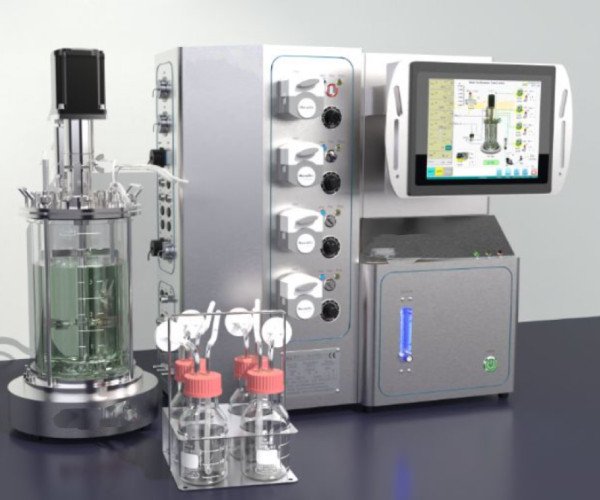

In the dynamic landscape of modern science and technology, the mini bench-top cell culture bioreactor
