CIP Automatic Fermenter: for Seamless & Sterile Operation
July 28, 2025

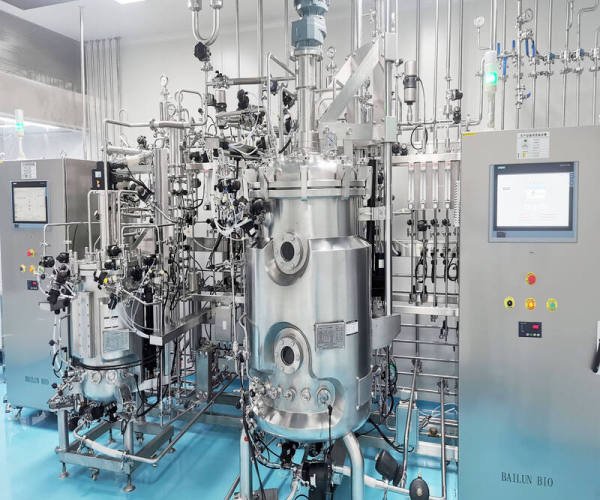

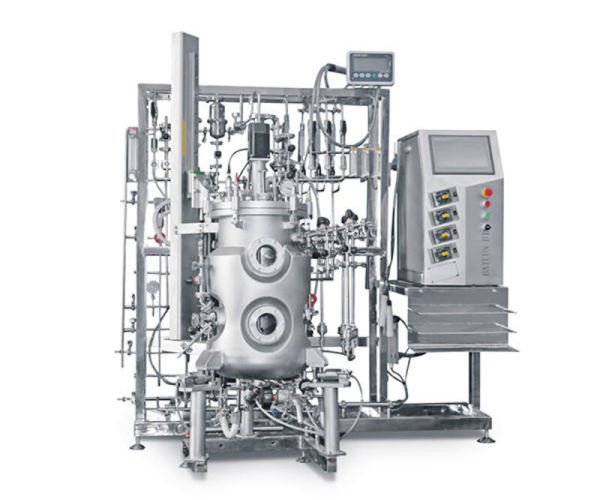

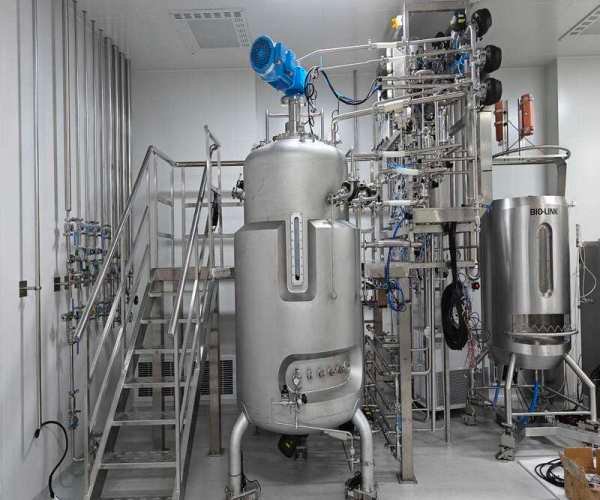

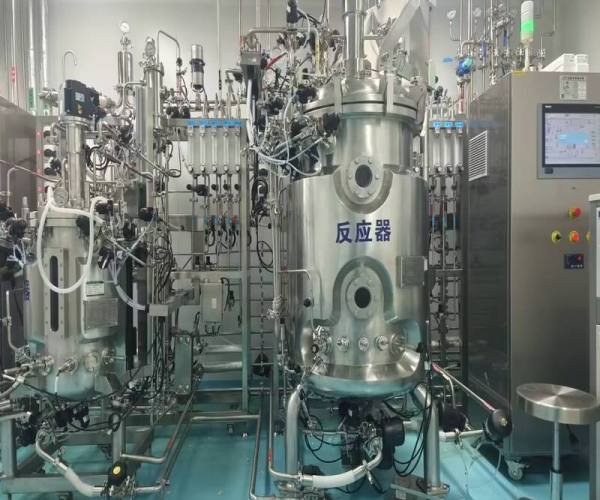

CIP means “Clean-in-Place,” meaning the CIP Automatic Fermenter can clean itself inside without taking it
| Brand | BAILUN bio Bioreactor and Fermenter Manufacturer |
|---|---|
| Model | BLBIO-SCUC |
| Applicable Industries | Manufacturing Plant, Vaccine |
| Weight | 300 KG |
| Machinery Capacity | 0.2L to 400KL |
| Core Components | Gearbox, Motor, Gear, Pump, Pressure vessel, PLC, |
| Key Selling Points | Automatic |
| Video outgoing-inspection | Provided |
| Condition | New |
| Processing Types | bacterial yeast cell culture |
| Power | 15-70Kw Depends |
| Fermenter application | Bacterial/yeast/mammalian cell culture etc. |
| Material | Glass,SS316L/SS304 |
| Volume | 0.2L to 400KL |
| Tank surface | 0.2um-0.4um, 0.4-0.6um |
| PLC | Siemens 1200/1500 |
| PH/DO sensor | Mittler or Hamilton |
| Terms of Payment | L/C, D/A, T/T |
|
Parameter
|
Description
|
||
|
Total volume
|
5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 500KL etc.
|
||
|
Working volume
|
30%~70%
|
||
|
Tank
|
Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5
|
||
|
Stirring system
|
Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle
Stir speed: 50~1000rpm/50-400rpm
|
||
|
Sterilization
|
Manually Sterilize in place(SIP), auto control by program is optional
|
||
|
Clean
|
Clean in place (CIP) by spray ball + CIP control valves and pipelines
|
||
|
Gas control
|
Control by rotor meter, air flow 1 vvm or O2 flow
|
||
|
Feeding
|
Automatically feeding by peristaltic pump
|
||
|
Anti-foam control
|
Automatically add antifoam by peristaltic pump
|
||
|
Temperature control
|
Auto-control, electric heating range: water source add 5ºC to 70ºC
|
||
|
PH control
|
PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.
|
||
|
Do control
|
0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.
|
||
|
Sampling
|
Sampling valve, can sterilization separately, manual
|
||
|
Harvest
|
Zero dead zone bottom valve, can sterilization separately, manual/auto
|
||
|
Lid lift system
|
30L-500L have lid lift system, 700-1000L have human hole.
|
||
|
Innoculation
|
4 valves group or pin in with flam protection
|
||
|
Pressure
|
Auto control, BD Germany pressure transmitter
|
||
|
Exhaust
|
Have condenser before exhaust, control by diagram valve / Proportional control valve.
|
||
|
Control parameters
|
10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions
|
||
|
Optional configuration
|
Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate,Batch culture, Seed transfer, etc.
|
||
